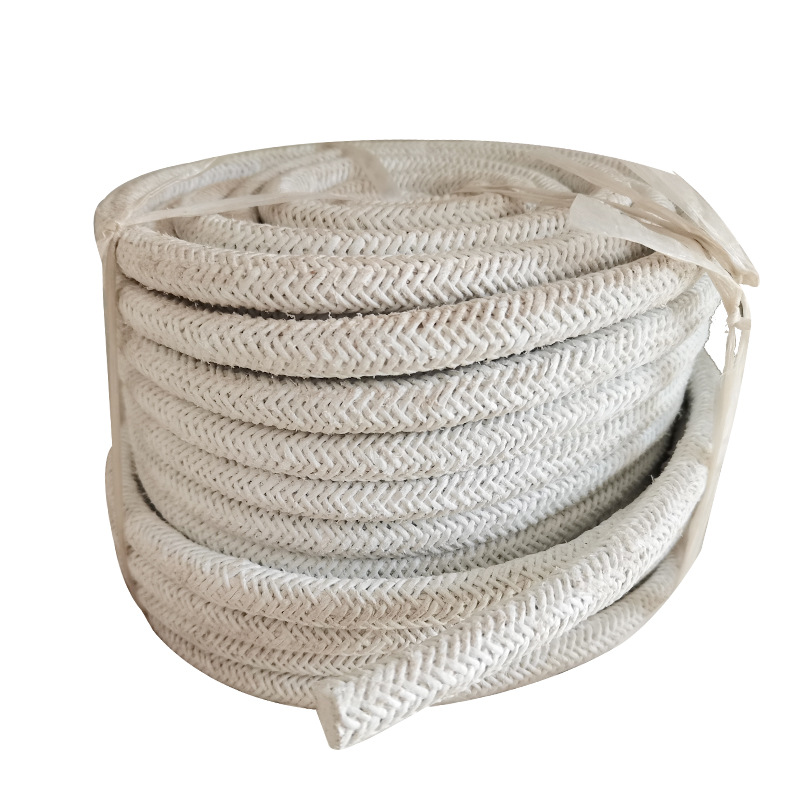

Ceramic Fiber Rope

Ceramic fiber rope is a flexible thermal insulation and sealing material made from braided ceramic fiber yarn. It is designed for filling gaps, limiting heat loss, and sealing equipment exposed to elevated temperatures.

Features:

• Classification temperature up to 1260°C
• Low thermal conductivity and heat storage
• Flexible construction for irregular surfaces and narrow gaps
• Good compression recovery
• Stable performance during repeated heating and cooling
• Resistance to steam, oils, and mild chemical exposure
• Asbestos-free composition
• Easy to cut, wrap, pack, and install

Specifications:

Ceramic fiber rope is available in different constructions to meet varying temperature and mechanical requirements:

• Round braided rope
• Square braided rope
• Glass-fiber-reinforced rope
• Stainless-steel-wire-reinforced rope
• Heat-resistant-alloy-wire-reinforced rope
• Custom braided profiles

Diameter, shape, density, reinforcement type, and roll length can be customized according to the application.

Applications:

• Furnace, kiln, boiler, and oven door sealing
• Expansion joint and equipment gap packing
• Thermal wrapping for hot pipes, hoses, and cables
• Inspection opening and maintenance cover sealing
• Burner and heating-component gap filling
• High-temperature gasket and packing applications
• Equipment connection sealing
• Exhaust and thermal-processing system sealing

Selection:

The appropriate rope should be selected according to continuous operating temperature, mechanical load, abrasion, movement, chemical exposure, and installation pressure.

Wire-reinforced constructions are generally recommended for applications involving greater mechanical stress or frequent movement. Glass-fiber-reinforced rope is suitable for lower-temperature applications where reduced weight or electrical insulation is required.
