Products

Glass Wool Board

• Density: 24-96 kg/m³
• Raw Material: Melten glass
• Thickness: 25–150 mm
• Asbestos Content: 100% Asbestos-Free
• Thermal Insulation & Sound Absorption

Send your inquiry nowWhatsApp

Product Introduction

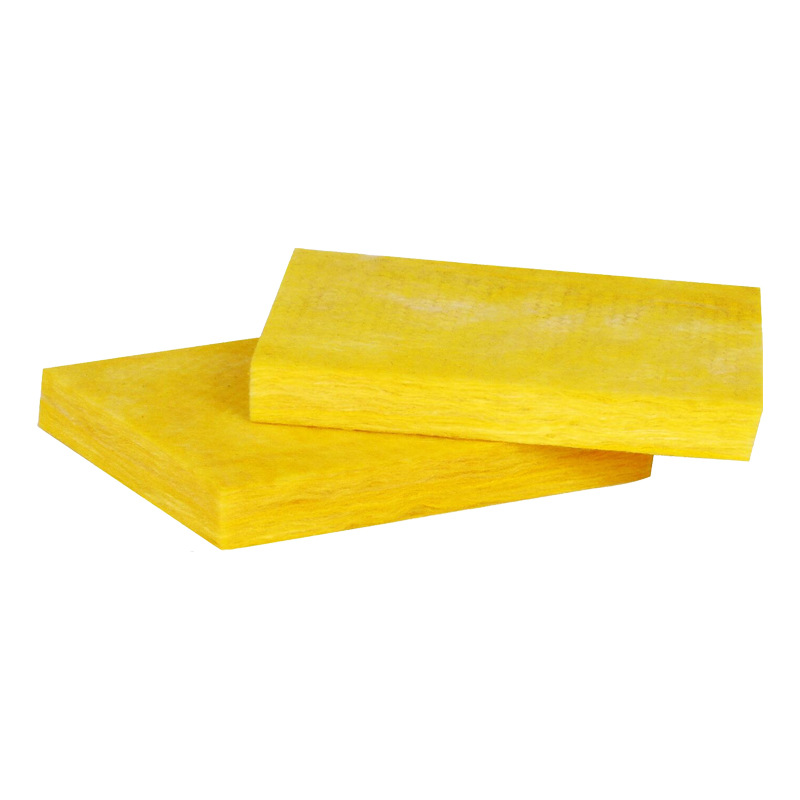

The Glass Wool Board is a processed form of glass wool, presenting as a rectangular panel with variable densities. Crafted from semi-finished glass wool products, it undergoes polishing, spraying, and adhesion. Primarily used for insulation, its fibers boast an average diameter of 7 μm, meeting thermal needs economically. Available with or without veneer, it’s lightweight, durable, and adaptable to irregular surfaces. This enables efficient energy conservation, heat loss reduction, and operational cost savings.

Feature:

  • High acoustic absorption and low heat conductivity coefficients.
  • Waterproof and corrosion-resistant.
  • Resistant to mildew and pests, effectively preventing condensation and pipe freezing.
  • Lightweight, flexible, and easy to transport and install.
  • Maintenance-free.
  • Long-lasting and resistant to aging.

Application:

  • Steel structure building heat preservation.
  • Energy-saving heat insulation for house walls and roofs.
  • Indoor partition walls, train compartments.
  • Fireproofing, heat resistance, and sound insulation for cooling and tall buildings.



Technical Data:

Glass Wool BoardSpecSupply Scope
Temperature(℃)-120℃~400℃
-184℉~752℉
Dimension (m)1.2*0.6, 1.2*1.2, 1.2*2.4
Thickness (mm)25~150
Density (kg/m³)24~96(1.5–6.0 lb/ft³)



ItemIndexMeasured valueRemarks
Bulk density(kg/m³)24~9624~96GB/T 13350-2000
Average diameter of fibers(m)< 8.04.0~6.0GB/T 13350-2000
Moisture resistivity(%)> 98> 98JISA9512-2000
Thermal conductivity (W/m.k)0.0360.036GB/T 13350-2000
IncombustibilityIncombustibleUp to standard (Grade A)GB/T 13350-2000
Sound absorption coefficient1.03product reverberation positioning 24kg/m3 2000HZGB/J47-83
Max. working temperature(°C)400410GB/T 13350-2000
